Building a digital twin to monitor office environment

Project Structure```

Signify_Bim_App/

├── main.ts # Frontend entry point

├── server.js # Backend Express server

├── config.ts # Frontend configuration

├── .env # Environment variables

├── docker-compose.yml # Docker orchestration

├── Dockerfile.frontend # Frontend container definition

├── Dockerfile.backend # Backend container definition

├── docker-start.sh # Docker deployment script

├── nginx.conf # Nginx production config

└── public/

└── myoffice.frag # 3D model

Features

🏢 3D BIM Viewer

Interactive 3D model visualization using That Open Components

- Fragment-based model loading (.frag format)

- Camera controls and model manipulation

- Area highlighting and navigation

- Transparent material rendering for better visibility

📊 Real-Time Data Integration

Area Occupancy Tracking: Live occupancy status for 6 office areas

Indoor Air Quality (IAQS) Monitoring: CO2, temperature, humidity, and other air quality metrics

- Energy Analytics: Lighting energy consumption visualization with interactive doughnut chart

🐳 Docker Support

- Full containerization with Docker and Docker Compose

- Automated build and deployment scripts

- Traefik & Nginx reverse proxy configuration for secure production

- Automated HTTPS/SSL certificate management via Traefik

- Environment variable-based configuration for security

colesbimapp.cloud 👈 Go to the BIM app

Building a digital twin on your own has been made possible with the latest advancements in IoT cloud, open BIM, and AI tools. In this project, I have built an IoT BIM App to monitor my office environments. I used Cursor AI for coding, Docker Compose for server containers setup, and Open BIM for 3D modeling in the browser. The app is deployed on a VPS using Traefik for loadbalancing, security hardening, and status monitoring. Live data gets from IoT cloud APIs.

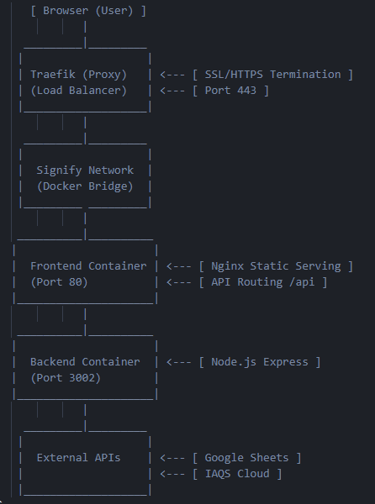

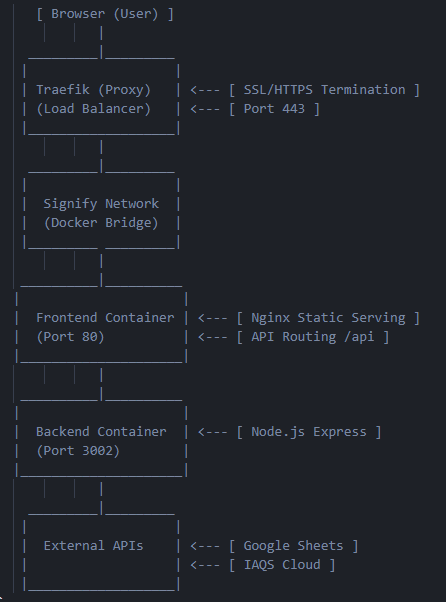

App Architecture
